BC Designs Gold Crosshead Bath Pillar Taps

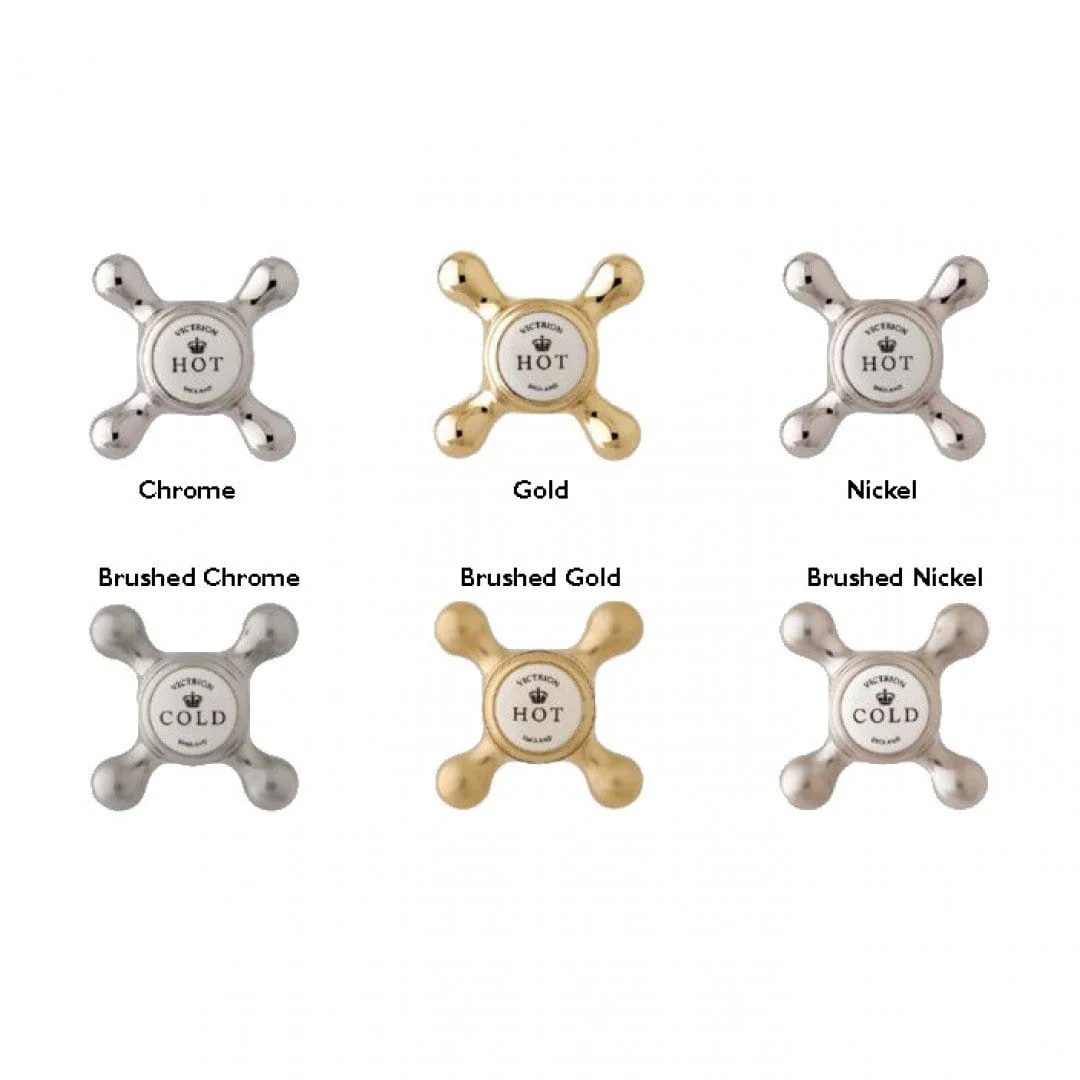

The BC Designs Victrion Lever Bath Taps are made with traditional crosshead handles for smooth operation of the 1/4 turn ceramic disc valves. A truly classic design. Both Exposed and Domed collars are provided as standard for you to install in whichever way you prefer. All Victrion Brassware is available in six special finishes.

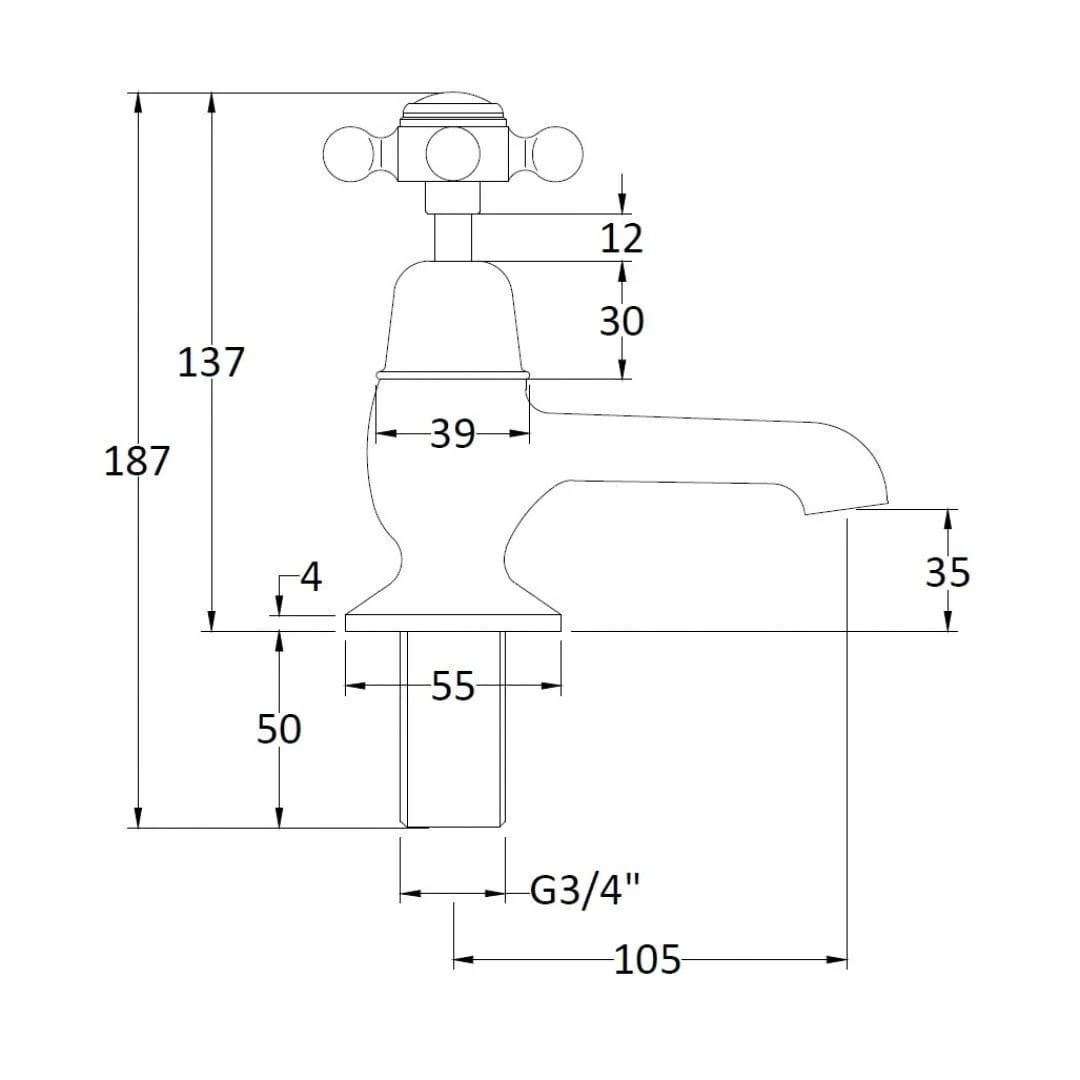

Technical Specification

• Height: 141mm
• Width: 66mm
• Projection: 138mm
• Weight: 1.7kg
• Material: Brass
• Finish: Gold
• Traditional Style
• 1/4 Turn Ceramic Disc
• Operating Pressure (bar): 0.1
• Flow Rate 0.1 Bar : 8.4 Litres per Min
• Flow Rate 0.5 Bar : 21.3 Litres per Min
• Flow Rate 1 Bar : 30.7 Litres per Min
• Flow Rate 2 Bar : 43.7 Litres per Min
• Flow Rate 3 Bar : 46.8 Litres per Min
• Pipe Size: 22 mm (3/4" Bsp)
• Delivery: 3-21 Working Days
