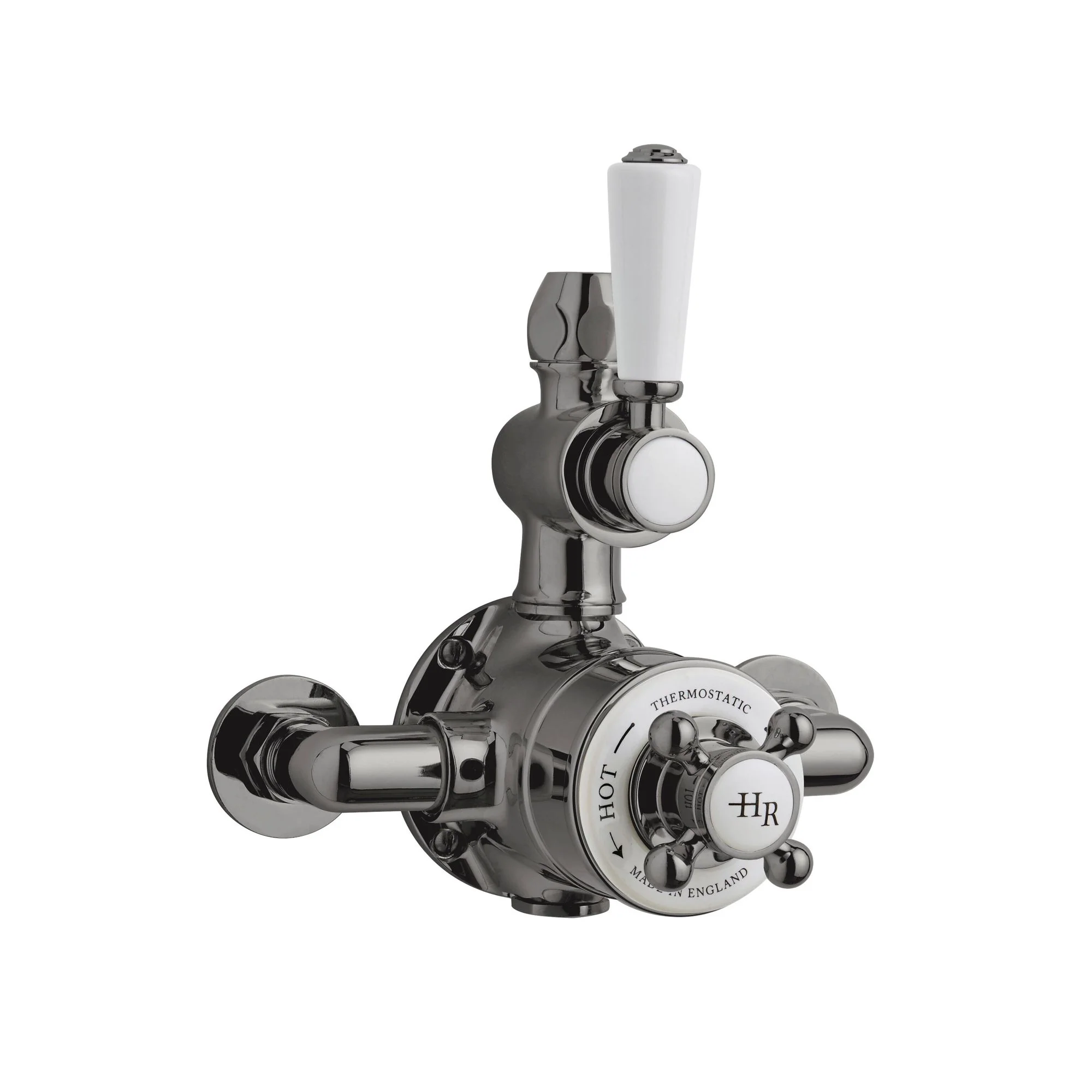

Hudson Reed White Topaz Exposed Twin Thermostatic Shower Valve - Brushed Pewter - TSVT701

This Hudson Reed thermostatic shower valve delivers a consistent showering experience with sleek, design-led styling and reliable temperature control. Built with solid brass body for long-lasting, dependable use. A reliable showering system for main bathrooms and en-suites. A polished addition designed to coordinate with the wider bathroom range.

• Traditional design
• Solid brass construction
• Brushed Pewter finish
• Triple thermostatic valve with 2 outlets
• Exposed installation
• Manual control
• Minimum 0.1 bar operating pressure
• Ceramic disc cartridge
• 20-year manufacturer's guarantee

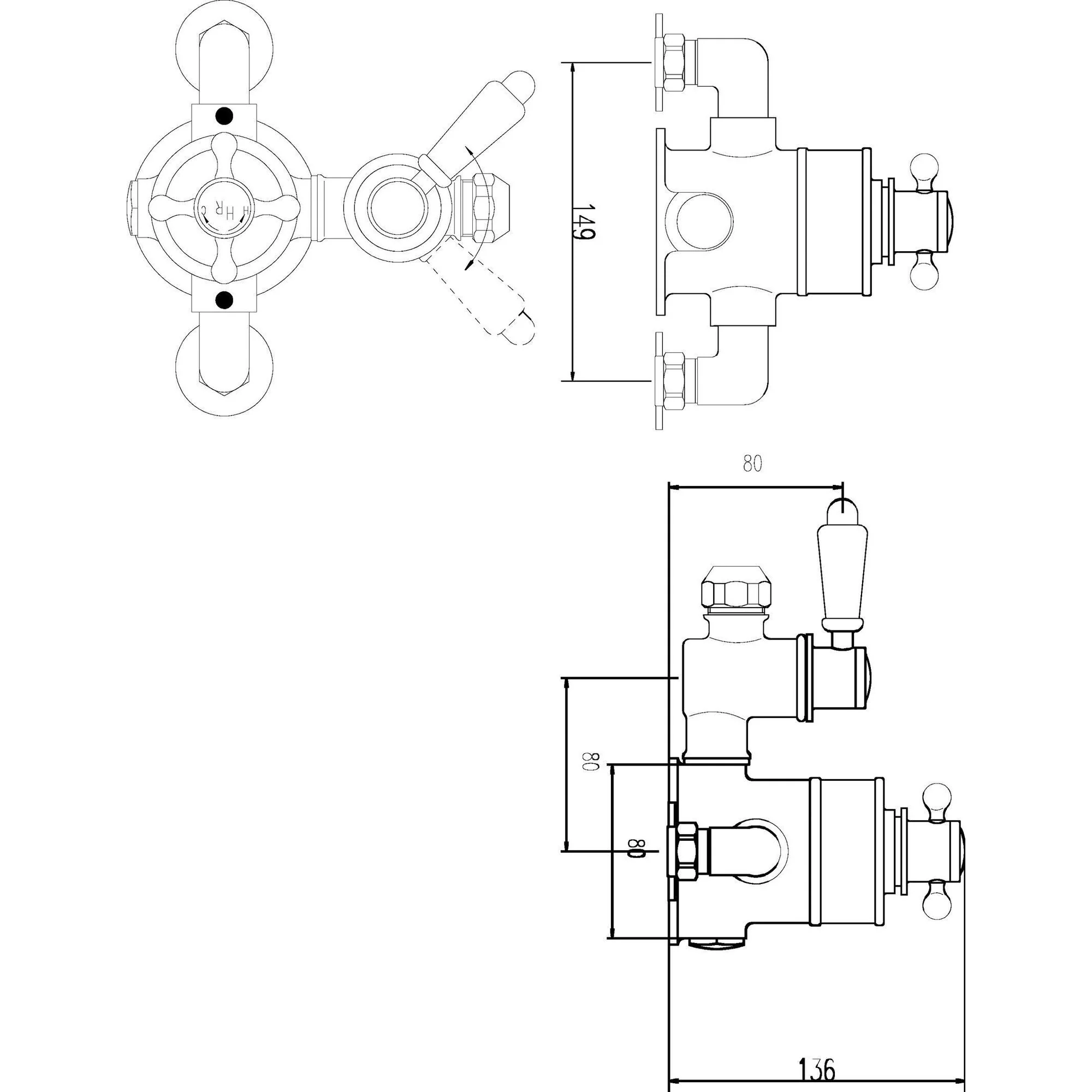

Technical Specification

Height: 332 mm

Weight: 3.1 kg

Width: 195 mm

Depth: 135 mm

Length:

Material: Brass

Mount Type: Wall Hung

Handle Type: Crosshead/Lever

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 4.5

Flow Rate at 0.5 Bar (L/min): 13

Flow Rate at 1 Bar (L/min): 18.5

Flow Rate at 2 Bar (L/min): 26

Flow Rate at 3 Bar (L/min): 33

Pipe Centres: 150

Manufacture Guarantee: 20 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
