Mayford 1700 L Shaped Matt Black Complete Shower Bathroom Suite

The sleek complete Mayford Matt Black L Shaped Shower Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring both a modern combination toilet and vanity furniture set with stylish taps and bath. Each item compliments the other as they follow the same style throughout, featuring minimalist edges and smooth lines. The combination vanity set boasts ample interior storage and luxury soft close doors. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

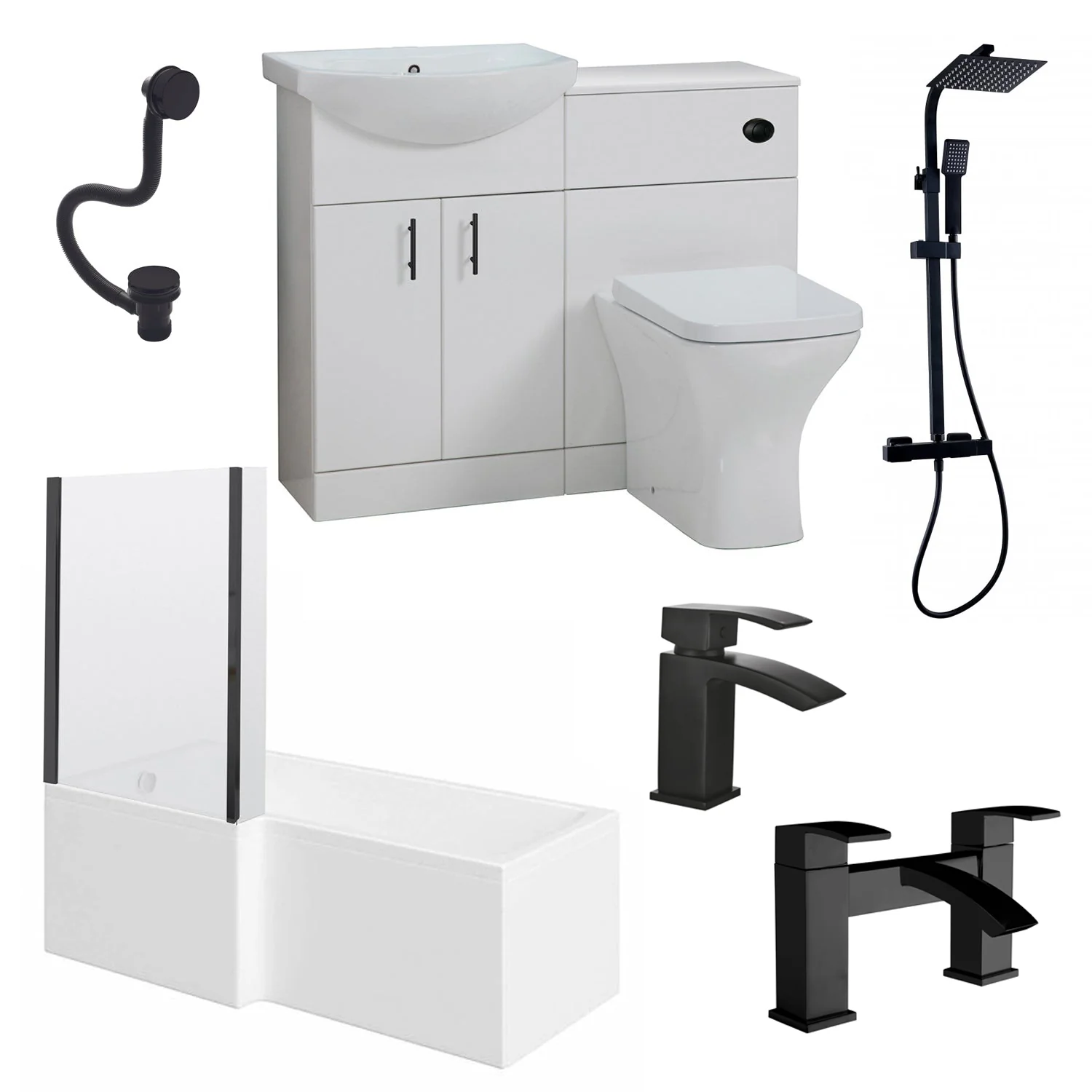

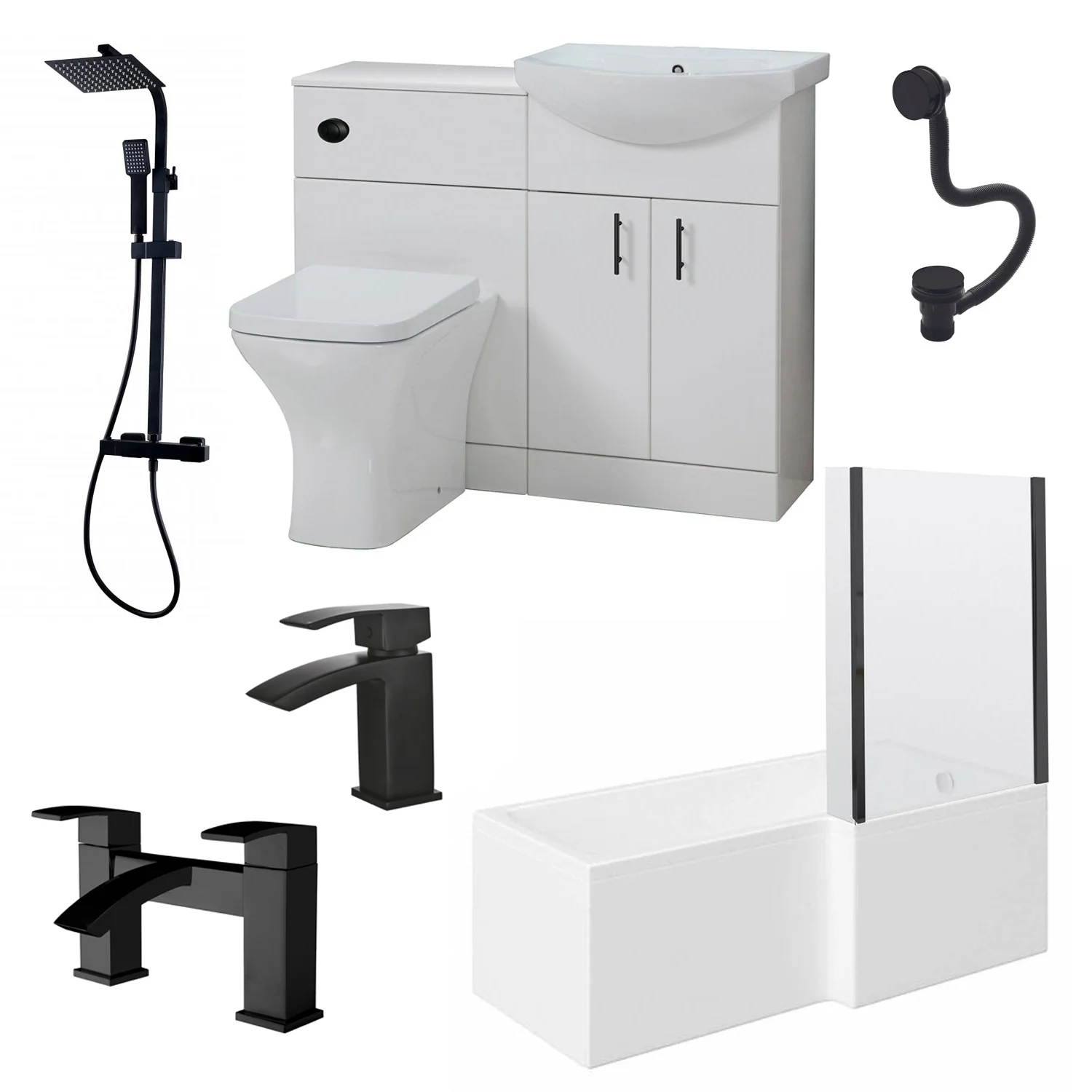

Suite includes :-
Bath
Bath Screen
500mm Vanity Unit with Basin
WC Unit
Concealed Cistern
Back to Wall Toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath Waste

Technical Specification

Bath

• Length : 1700mm
• Width : 850mm / 700mm
• Height : 400mm + Legs
• Style : Contemporary
• Material : High Quality Reinforced Acrylic
• Supplied undrilled, allowing you to place the taps along the back or end
• Finish : White
• Front Panel Included
• Excludes : End Panel



Screen

• Bath Screen Height : 1400mm
• Bath Screen Width : 808mm
• Adjustment Range : 788 - 808mm
• Toughened Glass Thickness : 6mm
• Hinged Bath Screen Design : L-Shaped with fixed small panel
• Material : Glass

• Frame Finish : Matt Black

• Style : Modern
• Handed : Reversible
• CE Approved : Yes
• Towel Rail : Excluded

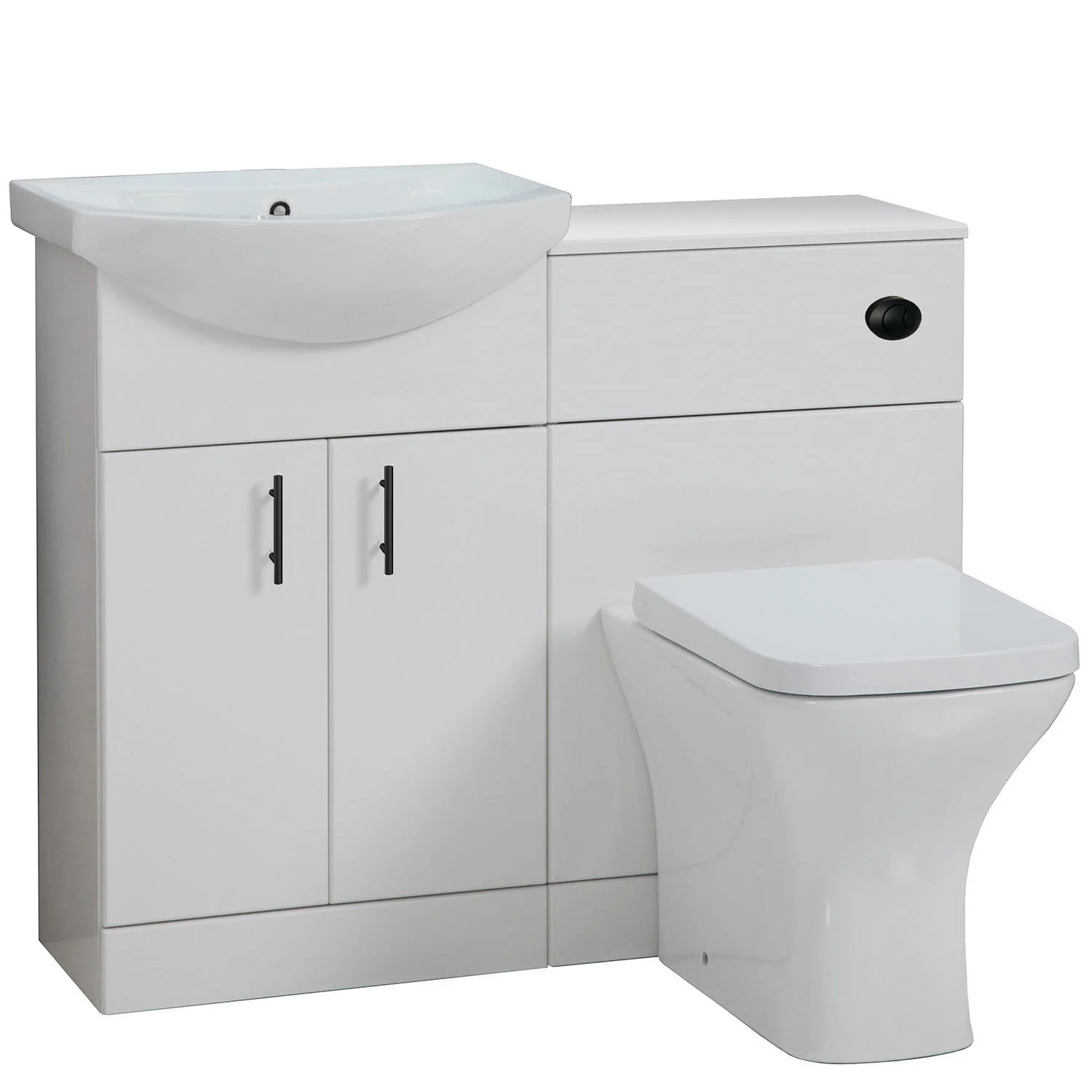

Vanity Unit

• Width : 514mm
• Projection : 300mm
• Finished in High Gloss White
• Double Door Cupboard
• Hinge type : 95 Degree Clip-On Soft Close
• Internal Shelf
• Brushed Brass Handles
• Brushed Brass Overflow
• Supplied Flat Pack for ease of transportation and manoeuvrability

• Ceramic Basin:

  • Width: 550mm
  • Projection: 440mm
  • 1 Tap Hole For Mono Basin Mixer

WC Unit

• Width: 500mm
• Projection: 300mm
• White Gloss Finish
• Supplied Flat Pack for ease of transportation and manoeuvrability



Concealed Cistern

• Flush: Chrome Finish Push Button
• Features: Suitable for Back to Wall Toilets



Toilet

• Height : 410mm
• Width : 365mm
• Depth : 500mm
• Pan Trap Style: P Trap
• Toilet Type : Back to Wall
• Material Specification : Vitreous China
• Shape : Square
• Includes : Pan & Soft Close Seat
• Quick release for ease of cleaning toilet seat

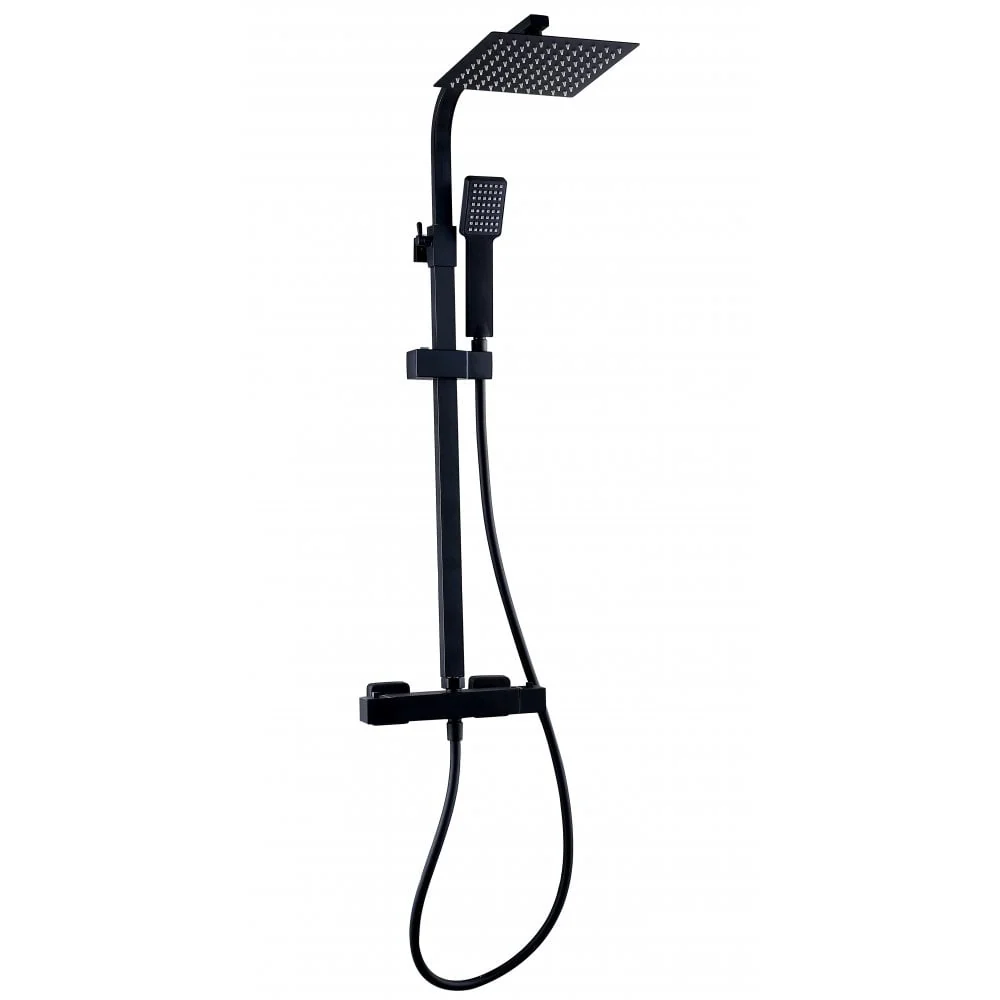

Shower

• The perfect solution to multi-option showering
• Thermostatically controlled
• Square shower head
• Square handset
• Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
• Full thermal protection to prevent scalding in the event of hot or cold water shut off
• In the event of hot or cold water failure the valve will shut down as per the relevant standard
• Suitable for high pressure water systems
• Suitable for unvented mains pressure systems
• Suitable for shower pumps
• Manufactured from high quality brass & ABS with luxury matt black finish

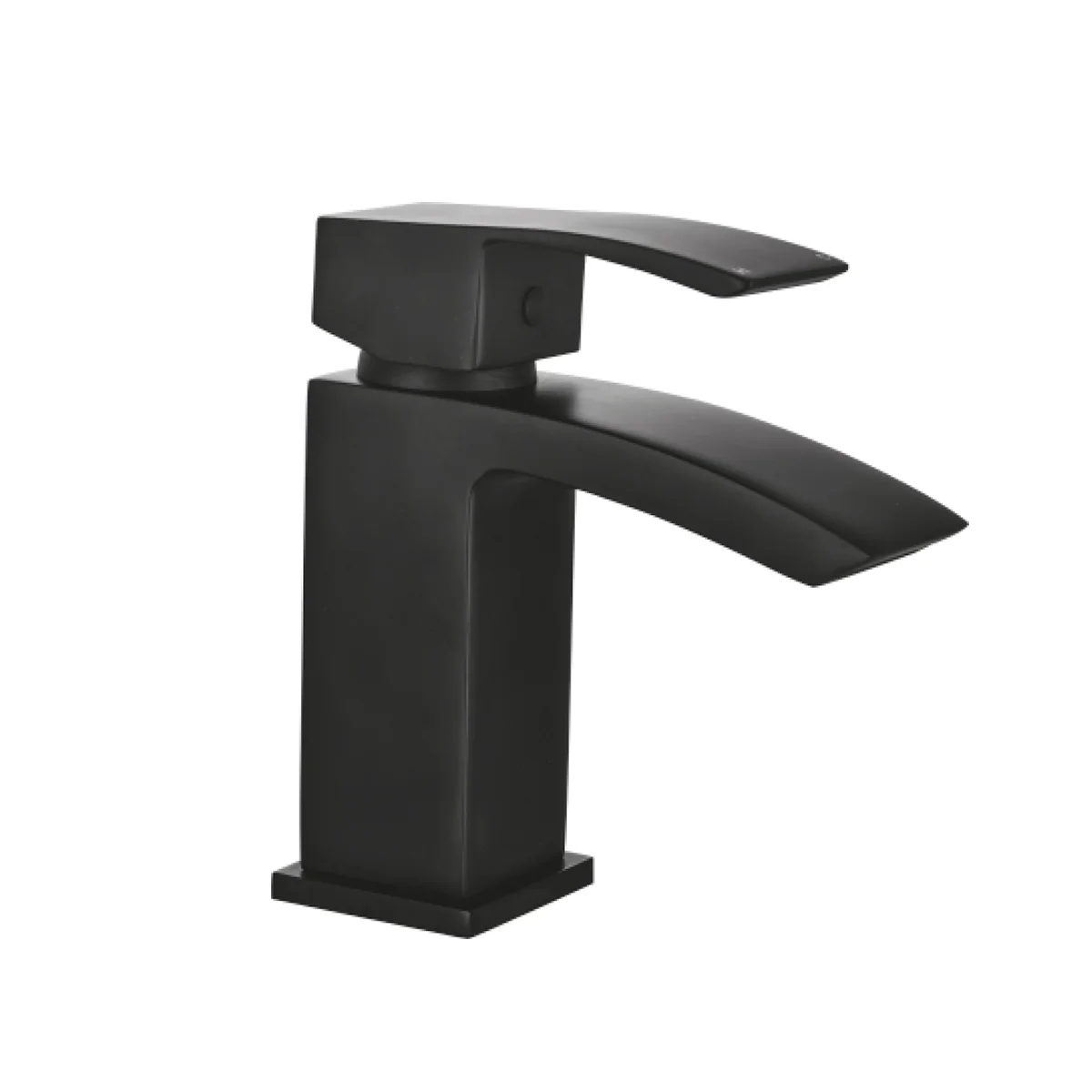

Basin Tap

• Height: 136.5mm
• Tap Spout Reach: 98mm
• Material Specification : Brass
• Finish : Black
• Operation : Single Lever
• Mounting : Deck Mounted
• Tap Hole Diameter: 35mm
• Includes Waste: Yes
• Inlet Connection: 1/2" M10
• Minimum Pressure : 0.2 Bar
• Flow Rate - 0.2 Bar 2.5 l/min
  Flow Rate - 0.5 Bar 5.6 l/min
  Flow Rate - 1.0 Bar 8.2 l/min
  Flow Rate - 2.0 Bar 11.5 l/min
  Flow Rate - 3.0 Bar 14.3 l/min

Bath Tap

• Height: 129.5mm
• Tap Spout Reach: 96.1mm
• Inlet Connection Size: 3/4 BSP
• Shape : Square
• Material Specification : Brass
• Finish : Black
• Operation : Dual Lever
• Tap Holes : 2
• Mounting : Deck Mounted
• Style : Modern
• Minimum Pressure: 0.5 Bar
• Flow Rate - 0.2 Bar 15.1 l/min
  Flow Rate - 0.5 Bar 31.1 l/min
  Flow Rate - 1.0 Bar 44 l/min
  Flow Rate - 2.0 Bar 61.8 l/min
  Flow Rate - 3.0 Bar 76 l/min



Waste

• Height: 70mm
• Width: 70mm
• Depth: 100mm
• Finish: Matt Black
• Manufactured from high quality brass
• Connection Size: 1 1/2"
• Waste Shape: Round
• Waste Pipe Length: 50mm
• Waste Pipe Diameter: 25mm
• Overflow Projection: 19mm
