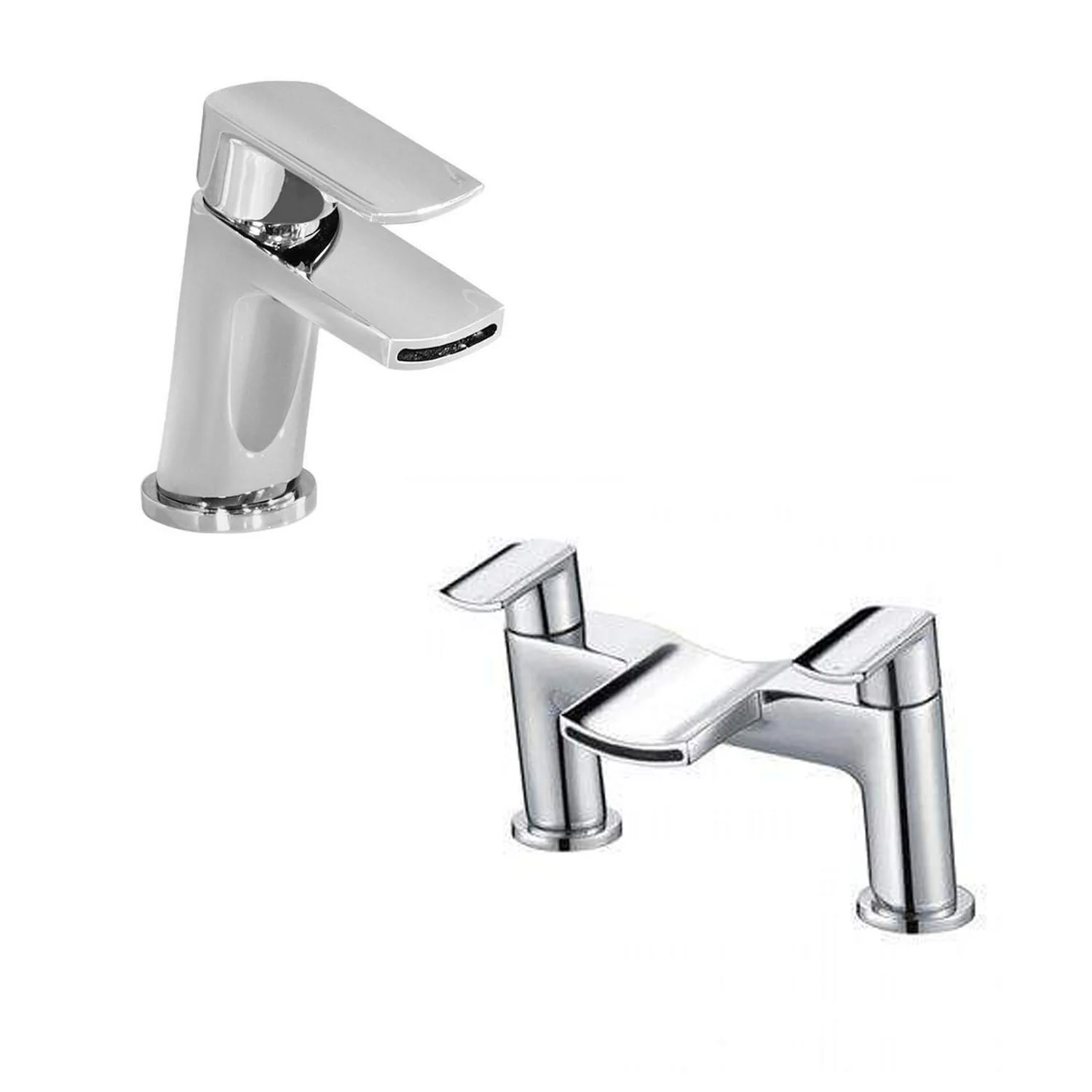

Voss Basin Mono and Bath Filler Tap Pack

Introducing the Voss Basin Mono and Bath Filler Tap Pack. Elegantly crafted from brass and finished in a sleek reflective chrome. Featuring a rounded style, the Voss range is operated by use of levers and features 3/4" ceramic disc technology, which are much longer lasting than your standard washers.

Technical Specification

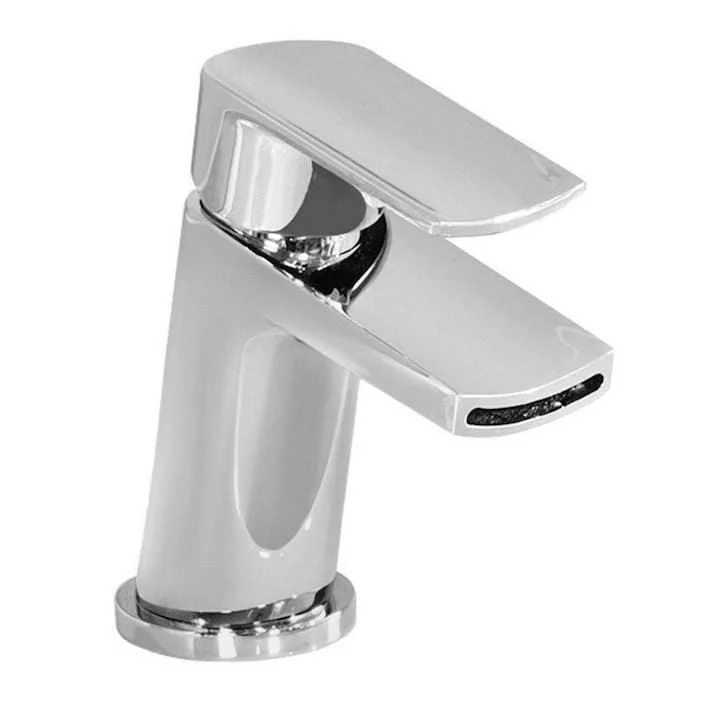

Voss Basin Mono with Waste:

• Height: 125mm
• Height Base to Spout: 68mm
• Projection: 95mm
• Finish: Chrome
• Manufactured: Solid Brass
• Cartridge: 30mm Ceramic Disc Cartridge
• Min Pressure & Flow Rate: 0.5 Bar (Flow Rate 6L per min)
• Max Pressure & Flow Rate: 3 Bar (Flow Rate 10.7L per min)
• Complete with push button waste

Voss Bath Filler:

• Height :132mm
• Total Projection : 123mm
• Width : 222mm
• Tap Inlet Centres : 180mm
• 3/4 water inlet feeds
• Working pressure between 0.5 and 5.0 bar pressure
• High quality design and build
• Latest 1/4 turn ceramic disc technology
• Material : brass body
• Highly polished chrome finish
• Hot and cold indicators (H & C) on lever controls
• Deck mounted
• Easy installation
• Gravity systems require minimum of 5 metre drop between bottom of water tank and bath filler tap (suggest using a shower pump on gravity fed systems)
• Suitable for combi boilers and pressurised systems between 0.5 and 5.0 bar pressure
• Suitable for shower pumps
• Complete with installation instructions
• Guarantee : 5 Years
• Flow Rates :-
• 0.5 Bar   15.0 Litres per minute
• 1.0 Bar   22.4 Litres per minute
• 2.0 Bar   31.8 Litres per minute
• 3.0 Bar   33.5 Litres per minute
